ARI is different - simple. different. electric.

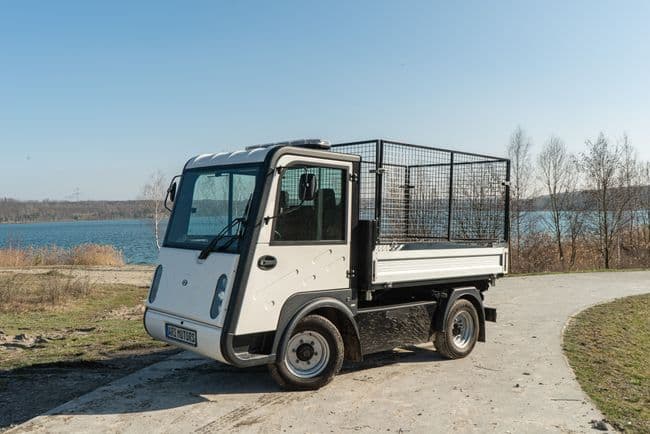

The ARI 1570 tipper is a powerful electric transporter and equipment carrier in vehicle class N1 and can carry a payload of around 1500 kilograms. The vehicle is particularly suitable for industrial applications and for use by suppliers, construction companies, tradesmen, local authorities and landscaping companies. The vehicle has a loading area of around 3.6 m² on the tiltable platform. The individual configurations allow perfect adaptation to the requirements of your company.
Low acquisition costs
The robust and powerful ARI 1570 electric transporter impresses with its low purchase price. Getting started with electric mobility can be so affordable! You can download all vehicle and accessory prices with our current ARI Motors product catalog.
Low operating costs
As an electric vehicle, the ARI 1570 is tax-exempt until 2030 in Germany. Thanks to its low energy consumption, the operating costs per 100 kilometers are just around 5.70 euros at an electricity price of 30 cents per kWh. In addition, favorable insurance rates are available through our partners.
Many funding opportunities
ARI Motors electric vehicles are subsidized by many countries and municipalities. This means that the low purchase prices can be subsidized by several thousand euros. We have also provided you with an overview of all funding opportunities. Find out about the funding opportunities and save a lot of money!
70 km/h
Electric transporter with 1500 kg payload
The ARI 1570 is a powerful electric transporter and equipment carrier in vehicle class N1. It reaches a top speed of 70 km/h and can carry a payload of around 1500 kilograms. With its robust body, the vehicle is particularly suitable for industrial applications and for use by suppliers, tradesmen, construction companies, local authorities and landscaping companies.
170 km
Up to 170 km range!
The 20 kWh LiFePO4 battery of the ARI 1570 supplies the powerful electric motor with enough energy for a range of up to 100 kilometers. A larger battery with 37 kWh and a range of 170 km is available as an option. This means that even longer distances are possible without any problems, for example for cross-country trips. Thanks to an optional quick-charging function, no long charging time is required.
Battery included
The battery is always included with ARI
The batteries installed in ARI Motors vehicles are of course always included in the vehicle price and are not charged separately or on a monthly basis. In addition to the standard batteries, we also offer optional high-performance batteries for even more range.
Space for ideas
3.6 m² loading area
As a tipper, the ARI 1570 has a tiltable loading area measuring 2.35 meters long and 1.55 meters wide. This creates a total area of around 3.6 m². The loading area can also be fitted with a tarpaulin body and a lattice box.
And the equipment? ...pretty impressive!
Comprehensive standard equipment
Despite its unbeatable price, the ARI 1570 comes with an adjustable steering column, FM radio and interior heating as standard.
Practical additional equipment
All-wheel drive, lashing eyes on the loading area, a set of winter tires and a trailer coupling are available as options. Other accessories are also available! So you can customize your vehicle to suit your requirements.
Frequently Asked Questions ARI Motors Electric Vehicles
Which battery is suitable for my requirements?
With the electric transporter ARI 458 as well as the passenger vehicles, you have the choice between the standard SLA lead battery and the optionally available LiFePO4 batteries in different versions. The SLA batteries have the advantage that they are maintenance-free, robust and inexpensive. However, they are also very heavy with approximitely 200 kg. The LiFePO4 batteries, on the other hand, are significantly lighter at around 90 kg, which can increase the payload. If payload is critical to your transportation needs, you should consider the LiFePO4 battery.
LiFePO4 batteries are also more powerful, which means that longer ranges of up to 495 km are possible with the ARI 458. While the SLA lead battery has a capacity of 120 Ah and the vehicle can travel around 120 kilometers, the three variants of the LiFePO4 battery have capacities of 160 Ah, 205 Ah and 275 Ah for ranges of 150, 200 or 250 kilometers. Since all batteries can also be installed twice, double the range is optionally possible here. If higher ranges are important for your requirements, you should opt for a LiFePO4 battery.
In addition, LiFePO4 batteries have a longer shelf life: while lead batteries have a service life of 900 - 1.000 charging cycles, LiFePO4 batteries have more than 5.000. This means that the additional costs when buying (e.g. 2,600 euros for the LiFePO4 battery with 150 km (93 mi.) range) or replacing (SLA: 1,600 euros, LiFePO4: from 2,600 euros) the battery can be offset in the long term. The guarantee period is 4 years or 60,000 kilometers longer, while SLA batteries have a 6 month guarantee followed by an 18 month guarantee. Consequently, if you are planning on using the vehicle very frequently and therefore also performing a lot of charging processes, the LiFePO4 battery is also more preferable here.
If you would like more information about which battery is best suited for your application, write to us directly by email at Info@ari-motors.com.
How Long Does It Take For The Vehicle To Be Fully Charged?
Depending on how empty the battery is at the point, the charging takes 6 to 8 hours at a conventional 220V outlet. With the LiFePO4 battery, fast charging charging is optionally available and does shorten the charging time considerably.
How many months of warranty do I have on the battery and vehicle?
The lead gel variant offers a 6-month guarantee on the battery and the vehicle and then an 18-month guarantee on the vehicle. The LiFePO4 variant offers a guarantee on the battery of 4 years or 60,000 km as well as a 6-month guarantee on the vehicle and then an 18-month guarantee.
Where Can I Have My ARI Motors Vehicle Repaired?
In principle, ARI Motors electric vehicles can be repaired in any car workshop, as circuit diagrams and repair instructions are made available to them when required. Many spare parts can also be ordered from spare parts shops or the ARI Motors online shop and can be delivered in around 48 hours to Germany and Austria. The delivery time can vary in other countries.
What Is The Range Of The Vehicles With A Charged Battery?
Depending on the way of driving, the vehicle can reach approximately 120 km (75 mi.) with the lead gel battery and up to 495 km (307 mi.) with the lithium-ion battery. We are examining the ranges on a regular basis with electrical as well as cargo loads in warm and cold temperatures. As with combustion engines, anticipatory driving helps to minimize the power consumption and thereby increases the range. If the stated ranges still seem too small to you, we recommend our solar panel for all box bodies to refuel the battery for free with solar energy. This can lead to approximately 30 km (19 mi.) more range.
How Do I Charge The Electric Vehicle?
The vehicle can be directly charged via a customary 220V outlet without the need of a separate wall box or charging station. Moreover, the outlet does not have to be fused.
